HDBeast Network Transmitter

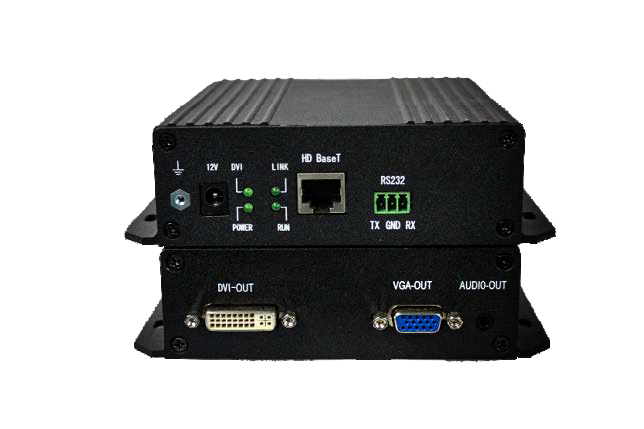

CK9W-HTP MTPF is an integrated DVI, HDMI, VGA signal transmitter using HDBaseT technology, which can transmit VGA, DVI, HDMI, audio signals and RS232 through a single super five network cable to transmit 100 meters of signal transceivers, compact and simple structure , It can be flexibly installed on the wall or cabinet. Multiple video formats use a single network cable to transmit cost-effective and wide compatibility. It is especially suitable for families, conferences, governments, agencies, enterprises and other environments that require long-distance transmission of multi-format signals.
Quality Certification：
Features：
l Support HDMI 1.3 /HDCP1.1 & 1.2 . Support VGA , DVI1.0
l Maximum support for 1920*1200@60Hz and below resolution transmission
l Support point-to-point transmission mode
l Comply with HDBaseT protocol standard
l Extend the maximum distance of 100 meters
l Use a single super five or above network transmission, the signal is stable
l The receiving end ( RX ) has the ability to output DVI and VGA at the same time
l Plug and play, no need to install additional software
l Support RS232 communication signal two-way sending and receiving
l Support analog audio transmission
l Support signal status light diagnostic monitoring function
l Can be used in cascade with the high-definition digital twisted pair matrix independently developed by Createk
